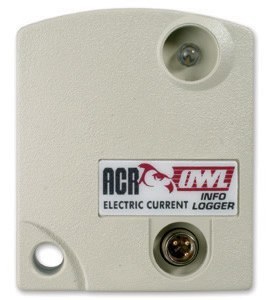

ACR OWL 300 Single-Channel AC Current Data Logger

OWL 300,Single,Channel,AC,Current,Data,Logger,ACR,SystemsThe ACR OWL 300 single-channel AC current data logger records current in environments that typical recorders cannot withstand. Due to its small size, the OWL 300 can go directly into an electrical panel or even inside small electrical equipment allowing the user to record electric current in a safe, discreet, and convenient manner.

Applications

  • Recording Ammeter - Current (Amps)
  • Determining Existing Loads - NEC 220.87 (Amperage)
  • Monitor Highest Loaded Phase - Apparent Power (kVA)
  • Profile Energy Demand - (kWh)


Specifications

Frequency Ranges
60 Hz (with A60FL and A70FL current probes)
50 Hz (with A65FL and A75FL current probes)
Current Ranges
5, 25, 100, 250 Amps (with OWL-A60FL and OWL-A65FL current probes)
10, 50, 250, 500 Amps (with OWL-A70FL and OWL-A75FL current probes)
Logger Accuracy
+/- 4% of full scale above 10% of range

Ordering Information

Model Case Catalog #
OWL-300 NORYL® Plastic 01-0252
