The

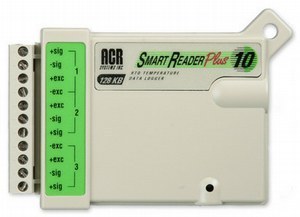

ACR SmartReader Plus 10 4-channel
temperature data logger is a powerful
and accurate RTD temperature logger
designed for easy monitoring and recording
of temperature. Any RTD probe or sensor
with a TCR of 0.00385 can be used
with this logger.
|
No. of Channels
|
Four (one for ambient temperature and three for temperature with RTD probes) |
|
RTD Type
|
Any 100 or 1000 ohm Platinum RTD with a Temperature Coefficient of Resistance (TCR) of 0.00385 |
|
Temperature Range *
|
-230 to 300°C (-382 to 572°F) |
|
Accuracy *
|
+/- 0.3ºC (+/- 0.54ºF) + resolution |
|
Resolution *
|
+/- 0.14°C (+/- 0.25°F) |
|
Wiring Configurations
|
2, 3, or 4 wire RTDs |
|
|
* 100 and 1000 Ohm probes only |
Ordering Information
| Model |
Memory |
Catalog # |
| SRP-010-128K |
128 KB |
01-0132 |
